Beam PotsDOCK Extreme Docking Station for Iridium 9575 (EXTRMPD)

€971.85 €971.85
Overview

The Beam PotsDOCK Extreme, an Iridium 9575 dock, is a highly featured docking station for the Iridium 9575 handset that can be used in various maritime, transport or fixed site applications considerably extends the functionality of the 9575 handset.

BRAND:
BEAM
MODEL:
POTSDOCK EXTREME
PART #:
EXTRMPD
WARRANTY:
24 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 7-14 BUSINESS DAYS
Product Code:
Beam-PotsDOCK-Extreme-Iridium

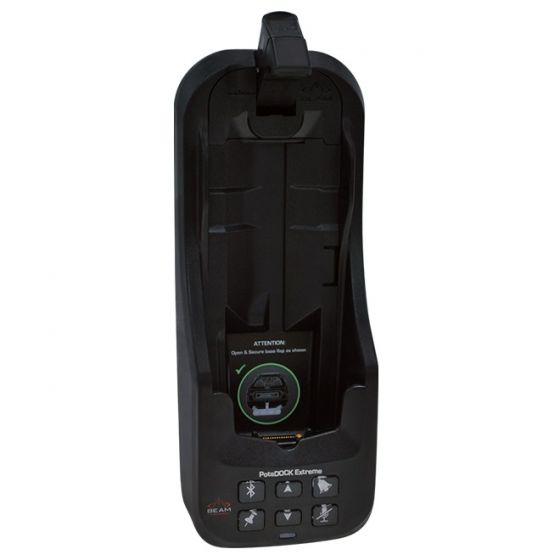

Beam PotsDOCK Extreme Docking Station
Beam PotsDOCK Extreme is a compact docking station specifically designed to support RJ11, Bluetooth and tracking. PotsDOCK allows the Iridium Extreme handset to be connected with an RJ11/POTS interface enabling standard corded, cordless or DECT handset connection or alternatively interfaced with a PABX system presenting standard ring, busy and dial tones like a standard phone network.



PotsDOCK Extreme provides extra features such as Bluetooth for voice connectivity along with tracking and alert which can be configured to support periodic polling or emergency alert reporting.

The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock.

PotsDOCK also supports the use of an optional compact BEAM Privacy Handset that can be attached next to the PotsDOCK for added convenience if required.

The dock features phone charging, a USB connection for data connection, integrated antenna, data and power connection making it possible to keep all antenna cables and power permanently connected to the dock making it ready for use at all times.

PotsDOCK Extreme CRADLE
. Securely holds Iridium Extreme handset
. Robust design and construction
. Charges Iridium Extreme handset ready for use
. Integrated antenna connection, Iridium & GPS
. USB connectivity

POTS/RJ11
. Supports standard cordless & corded telephones (5 REN)
. POTS phone can be run 600m (2000 ft) from unit
. Easily integrated to PBX system
. Ring, busy & dial tones
. Superior voice quality
. Call number processing and quick dial

TRACKING
. Triggering of Quick GPS
. Interfaces to BEAM's MyBuddy Extreme

PANIC/ALERTS
. Interfaces to BEAM?s MyBuddy Location Based web application
. Optional external alert button connection

INTEGRATED BLUETOOTH
. Bluetooth in-built to docking unit
. Bluetooth hands-free voice connectivity

IN-BUILT RINGER
. In-built ringer for enhanced ring indication

VOICE, DATA, SMS, SBD
. Supports all Iridium voice, data, SMS & SBD services
. Access to prepaid, post paid & crew calling

PRIVACY HANDSET
. Supports optional BEAM Privacy handset
. Auto answer when taken out of cup

INSTALLATION
. Supports 9 - 32V DC power input
. Flexible installation via universal mount
. Supplied with 100 - 240V AC pack included

QUALITY
. Professional industrial design
. 2 year replacement guarantee for peace of mind
. 100% factory tested
. Fully certified, Iridium, RoHS, CE, AS/EN60950

More Information
PRODUCT TYPESATELLITE PHONE
USE TYPEFIXED, MARITIME, VEHICULAR
BRANDBEAM
MODELPOTSDOCK EXTREME
PART #EXTRMPD
NETWORKIRIDIUM
FEATURESPHONE, TEXT MESSAGING, GPS, SOS, BLUETOOTH
HEIGHT212 mm (8,35 pouces)
WIDTH82.2 mm (3.24 inches)
DEPTH75,9 mm (2,99 pouces)
WEIGHT0,45 kg (1 livre)
FREQUENCYL BAND (1-2 GHz)
COMPATIBLE WITHIRIDIUM 9575 EXTREME
ACCESSORY TYPEDOCKING STATION
OPERATING TEMPERATURE-20°C to 70°C (-4°F to 158°F)
STORAGE TEMPERATURE-30°C to 85°C (-22°F to 185°F)
CERTIFICATIONSIRIDIUM CERTIFIED, EMC COMPLIANCE, RoHS, WEE, FLAME RETARDANT, SAFETY - SELV, ATMOSPHERIC PROTECTION

Beam PotsDOCK Extreme Features:
• Slim line compact installation
• Integrated Bluetooth connectivity
• POTS/RJ11 interface, cable runs up to 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS (via the 9575 handset)
• USB data interface
• Accessory/Ignition sense
• 9-32V DC power input
• AC Plug pack included 110/240 input
• Iridium and GPS Connectors
• PABX Compatible (analogue)
• 2 year repair or replacement warranty

Beam PotsDOCK Extreme Box Contents:
PotsDOCK Extreme
AC/DC Power Adaptor
DC Power Cable/Fuse Kit
Universal Mounting Bracket (RAM)
User Manual
Quick Start Guide
