Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle (EXTRMDD-PTT-W1A)

Skip to the beginning of the images gallery

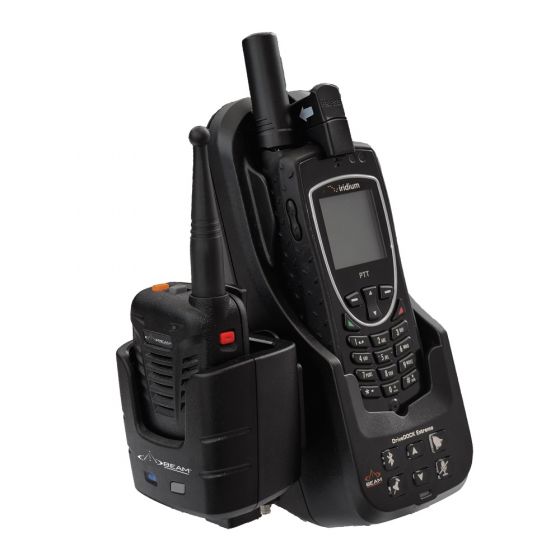

Iridium 9575 PTT + Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle

Name: Iridium 9575 PTT + Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle
Brand: IRIDIUM
SKU: Iridium-PTT-Beam-9575-EXTRMDD-PTT-W1
Availability: InStock

Sale Price: €3,579.74 €3,579.74

Overview

The DriveDOCK Extreme Wireless PTT Bundle is a high quality transport installation using the Iridium Extreme® PTT service. This combination extends the power of the Extreme PTT Device to the palm of your hand, whether in or out of a vehicle.

BRAND:

IRIDIUM

PART #:

EXTRMDD-PTT-W1A

WARRANTY:

12 MONTHS

Stock Status:

In stock

AVAILABILITY:

USUALLY SHIPS IN 2-3 BUSINESS DAYS

Product Code:

Iridium-PTT-Beam-9575-EXTRMDD-PTT-W1

Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle (EXTRMDD-PTT-W1)
The wireless handset’s rugged premium remote speaker microphone, deliver outstanding clear audio in every situation when connected to the Beam Extreme Docking Station. The microphone features a highly tactile PTT button that provides both mechanical and audible feedback every time you press, so you know your call is being sent.

DriveDOCK Extreme Interfaces

Privacy Handset (Line In/Out)	4-pole 3.5mm audio jack at the bottom of the DriveDOCK cradle.
External Speaker and Microphone	One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone.
Data Port (USB)	USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile.
Alarm (Alert) Loop	Alarm Mode: “Normally-Closed” Loop IN to OUT Up to 50m cable run multiple buttons in series. Brown wire is Input, Green wire is Output.
Horn Output / Audio System Mute	Blue wire on the cable loom. Open collector output can be interfaced to 12V or 24V DC with up to 120mA current sink capability.
Power Cable	4-way Microfit socket. +Vin (Red wire),0V (GND, Black wire), and ACC (On/Off Sense, Yellow wire). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc
LEDs/Buttons	Bluetooth, Ringer, Track, Mute, Up & Down

More Information
PRODUCT TYPE	SATELLITE PHONE, SATELLITE PTT
USE TYPE	VEHICULAR
BRAND	IRIDIUM
PART #	EXTRMDD-PTT-W1A
NETWORK	IRIDIUM
USAGE AREA	100% GLOBAL
SERVICE	IRIDIUM PTT
FREQUENCY	L BAND (1-2 GHz)
ACCESSORY TYPE	BUNDLE
COMPATIBLE WITH	IRIDIUM PTT

• Durable and reliable mic/speaker handset
• IP55 weatherproof compliance, built vibration and drop resistant
• Enhanced clear audio quality
• Compatible with existing BEAM DriveDOCK Extreme
• Supports BOTH Phone and PTT modes of the Iridium Network
• Ability to amplify PTT audio to external cabin loudspeaker
• Left or right side bracket mounting
• 3.5mm earpiece jack for optional earpiece accessories

Iridium 9575 PTT + Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle
