Iridium Beam Passive Antenna Cable Kit - 12m / 36ft (RST933)

Skip to the beginning of the images gallery

Iridium Beam Passive Antenna Cable Kit - 12m / 39.4ft (RST933)

Name: Iridium Beam Passive Antenna Cable Kit - 12m / 39.4ft (RST933)
Brand: BEAM
SKU: Beam-Passive-Cable-RST933
Price: 439.53 EUR
Availability: InStock

€439.53 €439.53

Overview

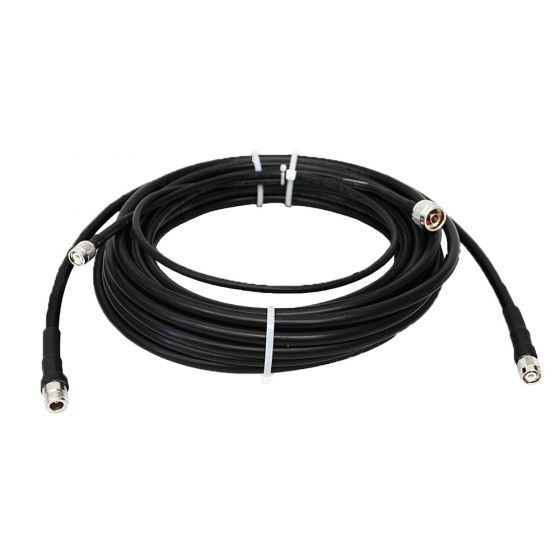

Beam RST933 Iridium 12 metre (39.4 feet) antenna cable provides a flexible installation option for most marine or fixed site installations and is pre-terminated with TNC male connectors.

BRAND:

BEAM

PART #:

RST933

ORIGIN:

Australia

WARRANTY:

12 MONTHS

Stock Status:

In stock

AVAILABILITY:

USUALLY SHIPS IN 3-5 BUSINESS DAYS

Product Code:

Beam-Passive-Cable-RST933

Details

Specifications

Reviews

Iridium Beam Passive Antenna Cable Kit - 12m / 39.4ft (RST933)
Beam RST933 Iridium 12 metre (36 feet) antenna cable provides a flexible installation option for most marine or fixed site installations and is pre-terminated with TNC male connectors.

• Within Iridium's 3dB Loss Specification
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested

Main Cable (Passive)

Length	m	ft
Main Cable	11	36.09
Dimensions	mm	inches
External Diameter	10.29	0.41
Bend Radius	25.4	1
Bend Radius - repeated	101.6	4
Temperature	Degrees °C	Degrees °F
Operating	-40°C to +85°C	-40°F to +185°F

Fly-Lead (Passive)

Length	m	ft
Fly-Lead	1	3.28
Dimensions	mm	inches
External Diameter	6.1	0.24
Bend Radius	19.1	0.75
Bend Radius - repeated	63.5	2.5
Temperature	Degrees °C	Degrees °F
Operating	-40°C to +85°C	-40°F to +185°F

Connectors

Main Cable	TNC-Male to N-Male
Fly-Lead	TNC-Male to N-Female

More Information
PRODUCT TYPE	SATELLITE PHONE
BRAND	BEAM
PART #	RST933
NETWORK	IRIDIUM
FEATURES	PASSIVE
FREQUENCY	L BAND (1-2 GHz)
ACCESSORY TYPE	CABLE
OPERATING TEMPERATURE	-40ºC to 85ºC (-40ºF to 185ºF)

Iridium Beam Passive Antenna Cable Kit - 12m / 39.4ft (RST933)

Main Cable (Passive)

Fly-Lead (Passive)

Connectors
