The iNetVu® 981 Drive-Away Antenna is a 98 cm Ku-band auto-acquire satellite antenna system which can be mounted on the roof of a vehicle for Broadband Internet Access over any configured satellite.

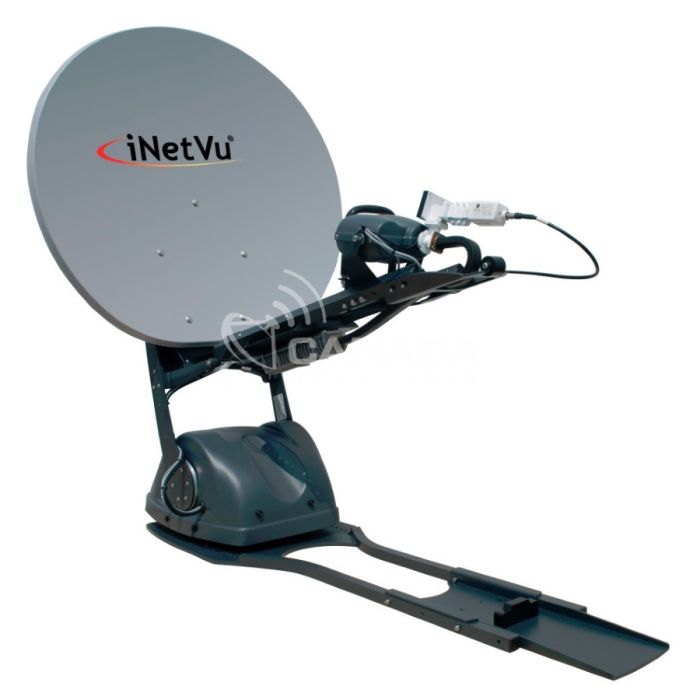

iNetVu 981 98cm Auto-Deploy Ku Band Antenna System
The iNetVu 981 Drive-Away Antenna is a new generation 98 cm Ku-band auto-acquire satellite antenna system with a significantly improved pointing accuracy, lower stow height and lighter weight. It can be mounted on the roof of a vehicle for direct broadband access over any configured satellite. The system works seamlessly with the iNetVu 7024 Controller providing fast satellite acquisition within minutes, anytime anywhere.
The iNetVu 981 Drive-Away Antenna is a 98 cm Ku-band auto-acquire satellite antenna system which can be mounted on the roof of a vehicle for direct broadband access over any configured satellite. The system works seamlessly with the iNetVu 7024C Controller providing fast satellite acquisition within minutes, anytime anywhere.
If you operate in Ku-band, the 981 system is easily configured to provide instant access to satellite communications for any application that requires reliable and/or remote connectivity in a rugged environment. The system is also field upgradable to Ka-band. Ideally suited for industries such as Oil & Gas Exploration, Military Communications, Disaster Management, SNG, Emergency Communications Backup, Cellular Backhaul and many others.
MA-981-Ku iNetVu 981-Ku Next-Gen Platform (Cross Pol) Complete with Skyware 98cm Circular Antenna, Feedarm with Feed Assembly, Flexible Wave Guide - (Includes CTR-7024C Controller and Cables).
| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | VEHICULAR |
| BRAND | INETVU |
| MODEL | 981 |
| NETWORK | VSAT |
| ANTENNA SIZE | 98 cm (38.6 inch) |
| FREQUENCY | Ku BAND |
| ACCESSORY TYPE | ANTENNA |
| OPERATING TEMPERATURE | -30ºC to 55ºC (-22°F to 131°F) |
| SURVIVAL TEMPERATURE | -40ºC to 65ºC (-40°F to 150°F) |
iNetVu 981 Features
• One-Piece high surface accuracy, offset feed, steel reflector
• Heavy duty feed arm capable of supporting up to 13.5kg (30 lbs) RF Electronics (LNB & BUC)
• Designed to work with the iNetVu® 7024C Controller
• Works seamlessly with the world’s most popular commercially available Ku modems and services
• Field upgradable to Ka-band
• 3 Axis motorization
• Supports manual control when desired
• One button, auto-pointing controller acquires any Ku or X-band satellite within 2 minutes
• Locates satellites using the most advanced satellite acquisition methods
• Based on Skyware Global 98 cm reflector with cross-pol feed
• Uses long focal length feed for low cross-pol performance
• Available with pod option
• Standard 2 year warranty
