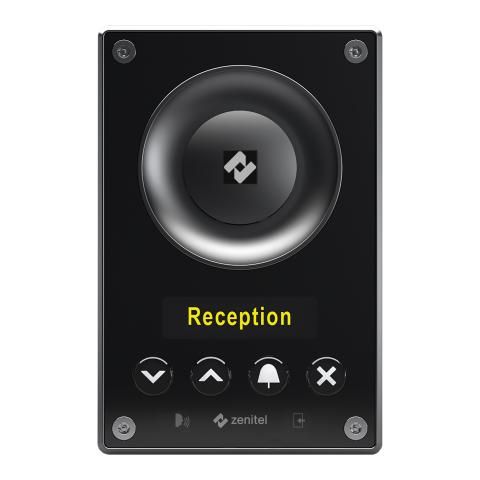

ZENITEL TCIS-6 Turbine Compact IP Standard-6 (1008111060)
This Intercom station utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, noise and acoustic echo cancellation, MEMS microphone, a 10W Class D amplifier and our unique speaker grille design. These features, in conjunction with our 70+ years of experience with acoustic technology are only a few of the many factors that contribute to our superior audio quality.
IP and SIP Intercom
| AUDIO | |
|---|---|
| Internal speaker amplifier | 10 W class D |
| Internal speaker | 10 W |
| Microphone technology | Digital MEMS, omnidirectional microphone |
| Audio technology | Modes: Full open duplex, switched open duplex |
| Adaptive jitter buffer | |
| Custom Ringing Tone | |
| Audio Mixing – Conversation and Group Call | |
| Automatic gain control (microphone) | |
| Sound Level Detection / scream alarm (in AlphaCom mode) | |
| Codecs | G.711, G.722, G.729 |
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz |
| SPL peak power at 1m in open duplex | 95 dB |
| SPL peak power at 1m in half duplex | 105 dB |
| SPL peak power at 1m in program distribution and announcements | 105 dB |
| Noise cancelling | Yes |
| Automatic Volume Control (AVC) | Yes |
| Acustic Echo Cancellation (AEC) | Yes |
| HARDWARE | |
|---|---|
| Ethernet connector | 1 x RJ 45 |
| All other connectors | Tool less, spring loaded, vibration proof terminals |
| General inputs and outputs | 6 (configurable) |
| Outputs | 12mA as LED drivers |
| Change-over relay (NO+NC+COM) | SELV |
| Power options | PoE or 24 VDC (16 – 48 V) |
| PoE (power over Ethernet) | IEEE 802.3af standard |
| External power supply | 24 VDC (16 – 48 V) |
| Power consumtion | Idle 1.8W, max 12W (depending on volume) |
| Audio line out / induction loop signal | 0 dBV |
| Call indication | Icons/colors for hearing impaired |
| Door open indication | Icons/colors for hearing impaired |
| Display technology | PMOLED |
| Display contrast | 20000:1 |
| Viewing angle | 160 deg |
| Display brightness | 120 cd/m2 |
| Display lifetime | 50 000 hours/5 years |
| CONSTRUCTION | |
|---|---|
| Dimensions (HxWxD) | 180 x 120 x 73 mm / 7.1” x 4.7” x 2.9” |
| Dimensions after flush mount | 180 x 120 x 24 mm / 7.1” x 4.7” x 0.9” |
| Dimensions with on wall box | 180 x 120 x 86 mm / 7.1” x 4.7” x 3.4” |
| Weight | 0.8 kg / 1.8 lbs |
| Faceplate material | 3 mm / 0.12” PMMA, colour printed on back side |
| Base / frame material | 3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted |
| Electronics cover material | Polycarbonate (translucent) |
| Gasket material | Silicone rubber |
| Fastening bracket material | SECC Steel |
| Button material | 3 mm / 0.12” Polycarbonate (transparent) |
| Button travel length | 1.25 mm |
| Button activation force | 350 gf |
| Button push-cycles before failure | 300 000 |
| Loudspeaker poke protection, large diameter object | 3D cast aluminum speaker grille |
| Loudspeaker poke protection, small diameter objects | Stainless steel mesh, acoustically transparent |
| NETWORKING AND PROTOCOLS | |
|---|---|
| Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery |
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x) |
| Management and operation | HTTP/HTTPS (Web administration and configuration) DHCP and static IP. Remote automatic software upgrade. Centralized monitoring. |
| Advanced supervision functions | E.g. network test, tone test, status reports, uptime, button status. |
| SIP support | RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme |
| DTMF support | RFC 2833, RFC 2976 (SIP info) |
| Integration and API | Connected to ICX-AlphaCom through AlphaCom protocol ACDP |
| Connected to Zenitel Connect Pro though Zenitel Link | |
| ONVIF | |
| Scripting |
| ENVIRONMENT AND COMPLIANCES | |
|---|---|
| IP rating | IP-66 (applies when mounted in TA-1 back-box) |
| IK rating | IK 08 |
| Operating temperature range | -40° to 70° C |
| Storage temperature range | -40° to 70° C |
| Realtive humidity | < 95% not condensing |
| Corrosion | Salty mist, tested according to EN60945 |
| Vibration | Tested according to EN60945 |
| UV-resistant | YES |
| EMC | CE and FCC Part 15 EN 50121-3-2 Railway application EN 50121-4 Railway application UN Regulation 10, revision 4 + Corr.1 + Amend.1 |
| Compliances | IEC/EN 60945 Marine Equipment IEC/EN61000-6-1 and IEC/EN61000-6-3 (light industry) IEC/EN 50155 Railway Application * IEC/EN 50486 Equipment for use in audio video door-entry systems * With additional conformal coating Requires use of EN 50155 approved PoE switch |
| Certifications | UL 60950-1, cUL 60950-1, CB to IEC 60950-1 |
| OTHER SPECIFICATIONS | |
|---|---|
| IP adress information | Speaks IP address after system boot |
| Country of manufacture | Poland |
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
| MARCA | ZENITEL |
|---|---|
| MODELLO | TCIS-6 |
| PARTE # | 1008111060 |
